TO DO: IF NOT ALREADY IN YOUR FOLDER
CUT AND PASTE THE SOURCE CODE BELOW TO AN OPEN FILE WINDOW IN IDLE
AND SAVE IT AS
tetrahedron.py

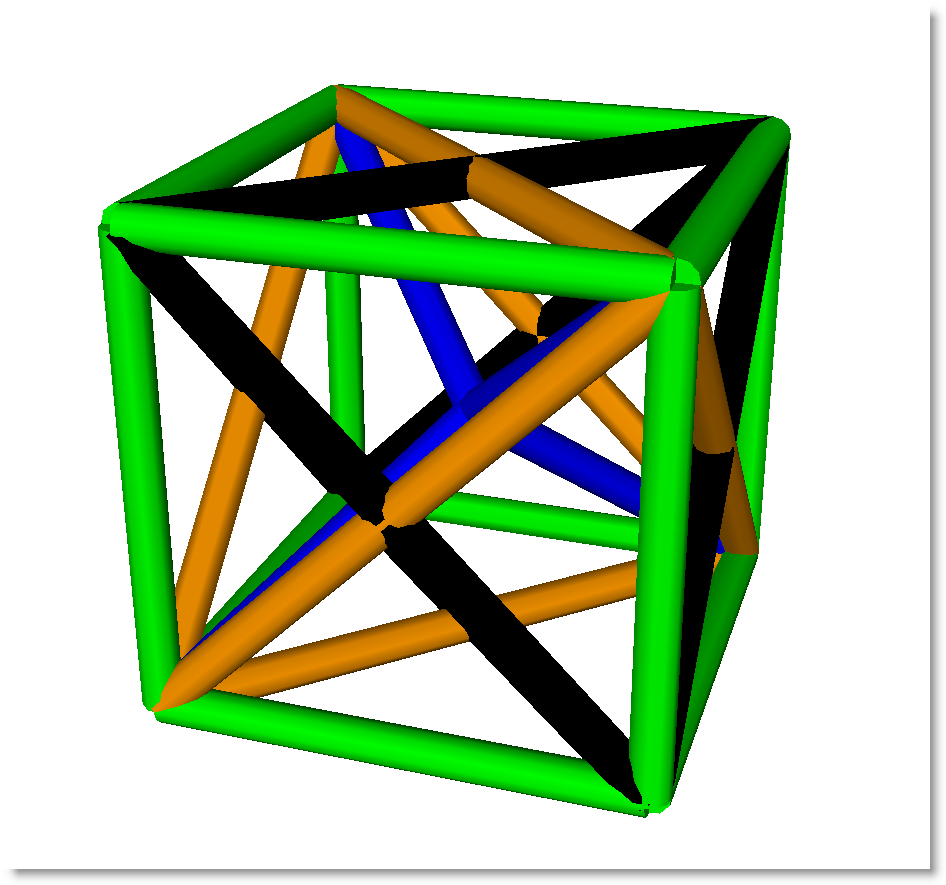

""" tetrahedron.py by K. Urner for Saturday Academy, Martian Math Summer camp 2010 @ Reed College http://www.4dsolutions.net/satacad/martianmath/ """ from stickworks import Qray, Edge, getedges from visual import * def setscene ( ): """set the stage for our little drama""" scene2 = display(title='Drawing a Duo-Tet Cube', fullscreen= True, autoscale = False, background=color.white, scale = vector(0.1, 0.1, 0.1)) return scene2 def duotet( ): """ draw a two tetrahedra (orange and black) in a green cube using Qrays from stickworks.py """ scene = setscene( ) scene.select( ) a, b, c, d = Qray((1,0,0,0)), Qray((0,1,0,0)), Qray((0,0,1,0)), Qray((0,0,0,1)) e, f, g, h = -a, -b, -c, -d # dual tetrahedron for stick in (a,b,c,d): stick.draw() for edge in ((a,b), (a,c), (a,d), (b,c), (c,d), (d, b)): stick = Edge(*edge) stick.color = color.orange stick.draw() for edge in ((e,f), (e,g), (e,h), (f,g), (g,h), (h, f)): stick = Edge(*edge) stick.color = color.black stick.draw() cube_faces = [(a,h,c,f),(a,h,b,g),(b,e,c,h),(b,e,d,g),(d,g,a,f),(c,e,d,f)] for edge in getedges ( cube_faces ): stick = Edge(*edge) stick.color = color.green stick.draw() print "OK, done..." return if __name__ == "__main__": duotet( ) |
